Model

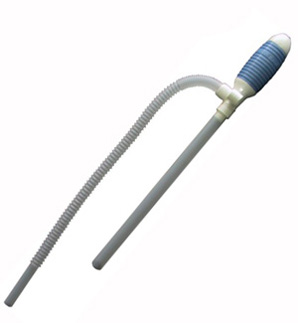

DP-15

Applications & Features

* Suction type : manual squeezing type

* Convenient one touch stop push button

* Kerosene, Light oils, diesel oils, chemical insecticides, toluene,

light solvents, gasoline, water(not safe for drinking), alcoholic drinks, Etc.

* Non corrosive, non toxic plastic material constructed

Specifications

* Total Length : 610 mm

* Suction tube Length : 420 mm

* Suction tube Inner Dia. : 23 mm

* Discharge Tube Length : 670 mm

* Discharge Tube Inner Dia. : 16.5 mm

* Head Out Dia. : 60 mm

* Delivery Volume : About 12 liter / Min.

* Main Material : P.E

Net Weight/pc

* About 145g

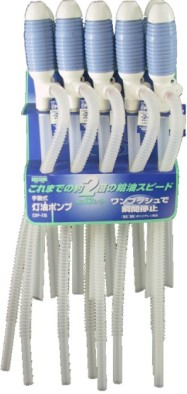

Packing

* 10 pcs. in a card holder

* 60 pcs.: master C/T box

Carton Dimension

( D X W X H )

Master C/T : 760 mm X 320 mm X 630 mm

G.W/Carton

About 10.5 kg

Stuffing Q'ty

* 20ft : 177 C/T 10,620 pcs.

* 40ft : 387 C/T 23,220 pcs.

* 40ft : 436 C/T 26,160 pcs.(Jumbo)

Other Informations

* Package : OEM available
