Model

DLP-530 Lever Pump

Applications & Features

* Suction type : manual up and down piston lever type / Heavy duty for thick oil

* Kerosene oil,Diesel Fuel, Diesel oil, Bio Diesel, Hydraulic oil, Lubricant, etc.

* A unique toggle mechanism is incorporated in the handle linkage to correct piston shaft geometry to creat smooth operation and also prevent premature piston shaft seal failure.

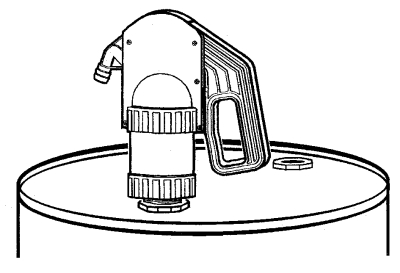

* 2" drum bung adaptor With lock Nut

* DO NOT use this pump for transfering the following liquids :

ACETON, BENZEN, CREOSOL, ETHYL, PHENOL, METHYL ETHYLE, Gasoline, Concentrated acids(Sulfuric acid, Nitric acid, Hydrochloric acid)

Specifications

* Three-piece telescopic suction pipe adjustable from 350mm to 980mm to fit most containers.

* Discharge Tube Length : About 2 meters

* Discharge Tube Inner Dia. : 20 mm

* Delivery Volume : About 530ml per stroke

* Main Material : ABS, Polyprophylene, Acetal

Net Weight/pc

* About 980g

Packing

* Each in an individual case and 10pcs. In a master C/T box.

Carton Dimension

( D X W X H )

* Master C/T : 780mmx415mmx485mm

G.W/Carton

* About 15.5kg

Stuffing Q'ty

* 20ft : 174 C/T 1,740pcs.

* 40ft : 360 C/T 3,600pcs.

* 40ft Jumbo: 390 C/T 3,900pcs.
